LNG Production Unit

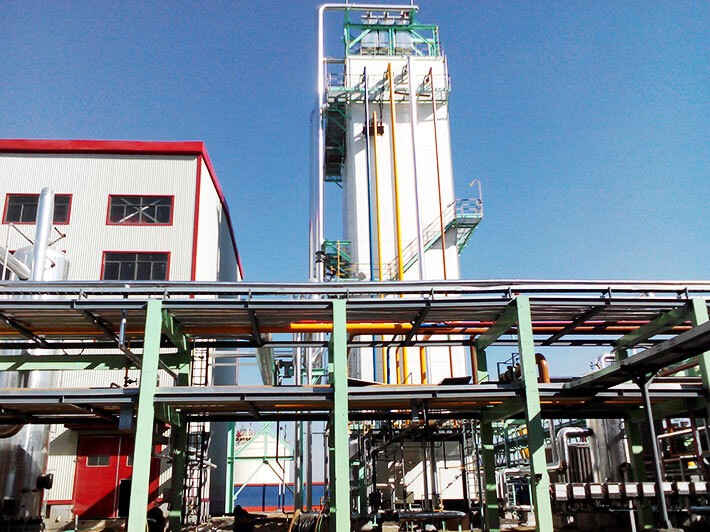

Primarily using methane-rich exhausted gas to obtain LNG, and the common processes are mixed refrigerant cycle (MRC), pre-cooling, nitrogen cycle expansion, etc. Kaiyuan has successively put into operation several cryogenic separation liquefied LNG plants, in which the Qianan Yichi liquefied natural gas plant was the largest coke oven gas LNG plant in China at that time.

Product Description

Primarily using methane-rich exhausted gas to obtain LNG, and the common processes are mixed refrigerant cycle (MRC), pre-cooling, nitrogen cycle expansion, etc. Kaiyuan has successively put into operation several cryogenic separation liquefied LNG plants, in which the Qianan Yichi liquefied natural gas plant was the largest coke oven gas LNG plant in China at that time. It produces 1 million cubic meters of liquefied natural gas per day, and the methane recovery rate is as high as 99.5%.

Advantages:

1. The patented technology is mature and the process is optimized.

2. The operation is stable and simple.

3. low operating energy consumption.

4. high product purity and high hydrogen recovery rate.

5. Excellent pre- and after-sales services.

  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.

Parameter

--Sample Models
Source Gas Yield Purity Cryogenic Method Distillation method Side products
Liquefying Natural Gas Up to 1.5M TPD - mixed refrigerant cycle - -
Synthetic ammonia exhausted gas Up to 170K TPD 97%-99% Pre-cooling mixed refrigerant cycle Nitrogen cycle expansion Single tower multiple towers Spray tower Y
Methanol exhausted gas Up to 170K TPD 97%-99% Pre-cooling mixed refrigerant cycle Nitrogen cycle expansion Single tower multiple towers Spray tower Y
Methane gas Up to 85K TPD 97%-99% Pre-cooling mixed refrigerant cycle Nitrogen cycle expansion Single tower multiple towers Spray tower -
Well gas Up to 70K TPD ≥99% Gasifier + methanation + Pre-cooling + mixed refrigerant cycle -
Coke oven gas Up to 1.5M TPD ≥99% Gasifier + methanation + Pre-cooling + mixed refrigerant Y
