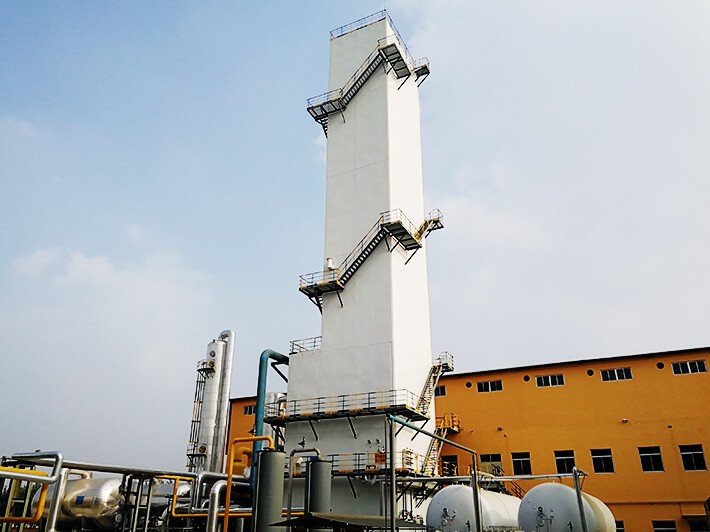

Ultra-Pure Nitrogen Generator

An air separation unit dedicated to the production of pure nitrogen. According to different requirements of the end users for pressure grade of pure nitrogen product, the flow process of pure nitrogen equipment mainly includes orthoflow air expansion, waste nitrogen return expansion, double column orthoflow expansion and so on.

Product Description

An air separation unit dedicated to the production of pure nitrogen. According to different requirements of the end users for pressure grade of pure nitrogen product, the flow process of pure nitrogen equipment mainly includes orthoflow air expansion, waste nitrogen return expansion, double column orthoflow expansion and so on.

Advantages :

1. The patented technology is mature and the process is optimized.

2. The operation is stable and simple.

3. Customizable pressure grade without using product compressors.

4. Excellent pre- and after-sales services.

  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.
  • Henan Kaiyuan Air Separation Group Co. Ltd.

Parameter

--Sample Models
Project name Year Location Application field Operating conditions Nitrogen yield (optional LN yield) Nitrogen purity Nitrogen Pressure (before/after compressor) Optional Oxygen output O2 purity
KDN-3000 2013 ShanDong chemical Design 3000nm3/h or 150TPD (150nm3/h or 4.5TPD) ≤2PPmO He Ne≤25PPm 0.7Mpa 350nm3/h or 12TPD 99.6%O2
KDN-11000 2013 BeiJing chemical Design 11000nm3/h or 330TPD 0.25Mpa/2.45Mpa
KDN-11500 2015 NeiMengGu chemical Design 11500nm3/h or 345TPD (200nm3/h or 6TPD) 0.7Mpa 300nm3/h or 10TPD
KDN-20000 2018 HeiLongJiang chemical Design 20000nm3/h or 600TPD (500nm3/h or 15TPD) 0.26Mpa/0.85 Mpa
KDN-6000 2003 ShanXi chemical Design 6000nm3/h or 240TPD 0.25Mpa
